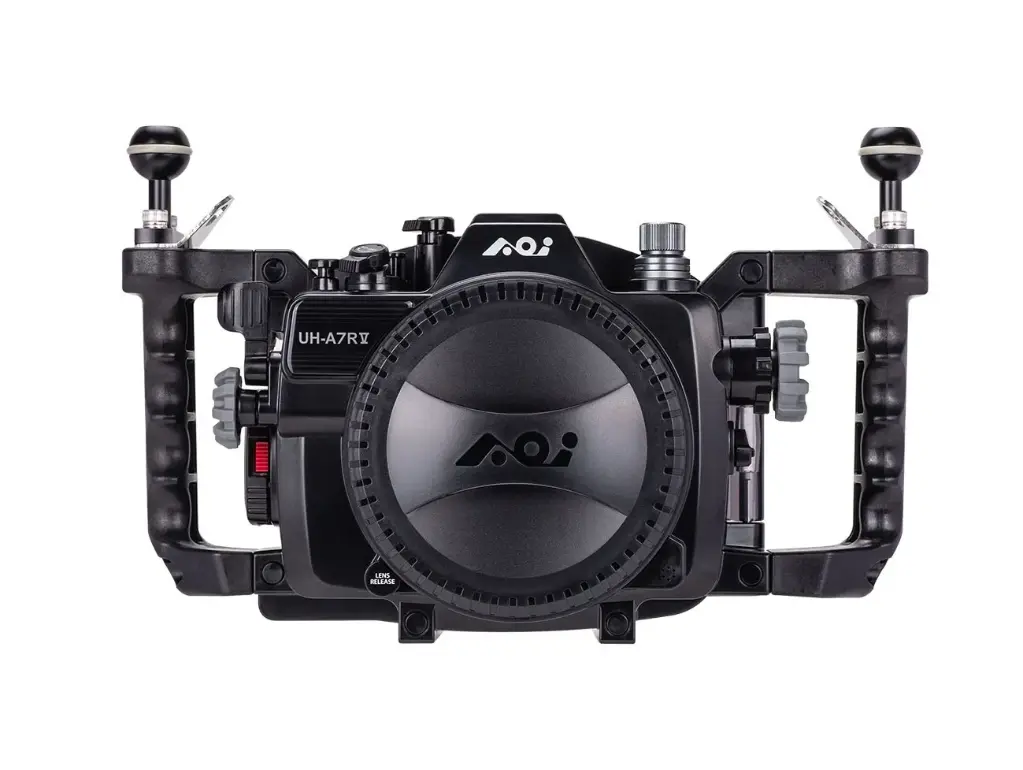

AOI UH-A7RV Underwater Housing for SONY ILCE-7RM5 Camera

https://www.divesea.shop/web/image/product.template/36209/image_1920?unique=8b15d7a
Brand: AOI
SKU: UH-A7RV

AOI UH-A7RV Underwater Housing


Physical Specifications
- Dimensions: 321.5 mm (L) × 130.4 mm (W) × 203.5 mm (H)
- Weight (On Land): Approx. 2981.0 g (housing body + body cap only)
- Weight (Underwater): Approx. -190.0 g (neutral buoyancy with Sony ILCE-7RM5, battery, FE 28-60mm F4-5.6 lens, AOI FLP-103 port & HSC-03 hot shoe connector)

Standard Accessories Included
- Body Cap (AOI BC-101) ×1
- Hot Shoe Connector (AOI HSC-03) ×1
- Camera Tray-02 ×1
- Spare Main Seal O-ring (AOI SOR-07) ×1
- Spare Secondary Seal Ring (AOI SSR-05) ×1
- Spare O-ring for Vacuum Valve Protection Cap (AOI SRVV-01) ×1
- O-ring Remover (AOI ORR-02) ×1
- LCD Hood (AOI LCDH-01) ×1
- Vacuum Hand Pump (AOI VP-03) ×1
- Silicone Grease (AOI SIGR-5) ×1
- Lanyard (AOI LYD-01) ×1
- Silica Gel (AOI SIGE-3) ×1

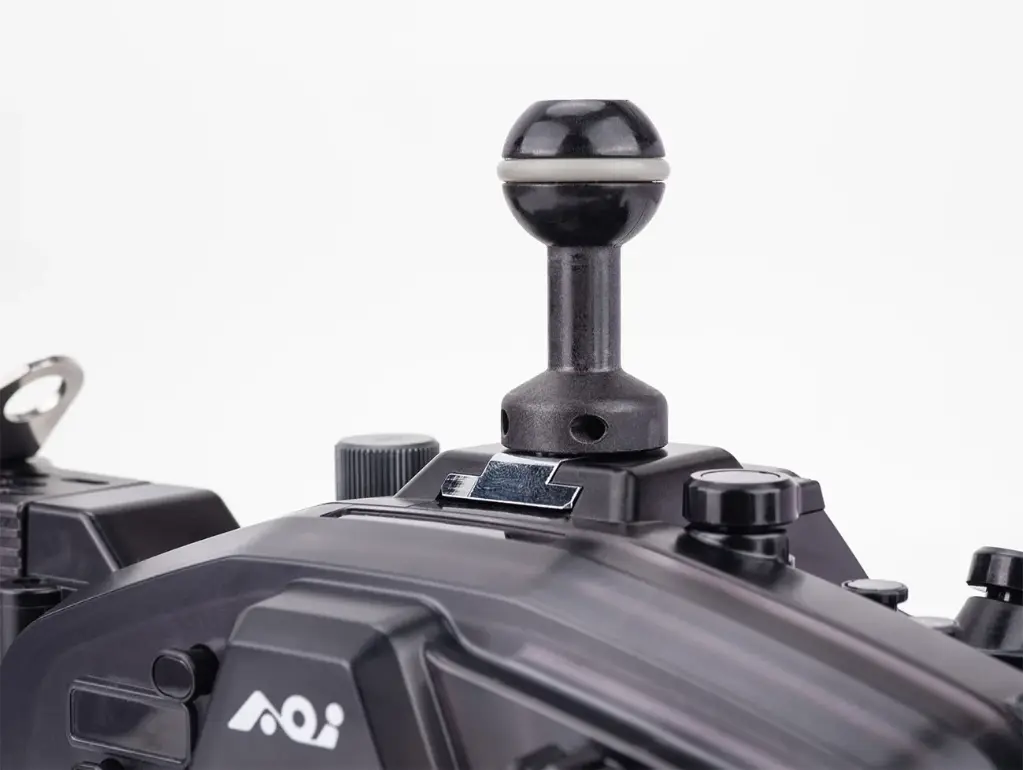

- Ball Mount Base (AOI BM-01-BLK) ×1
- USB Type-C Charging Cable (AOI USBC-02)
- Extended Shutter Release Lever ×1
- Allen Key for M6 ×1
- Micro-Fiber Cleaning Cloth (AOI MC-01) ×1

*Specifications and appearance are subject to change without prior notice.*

Perfect for underwater photographers seeking reliable depth, vacuum safety, and full flash compatibility with the Sony A7R V mirrorless camera.

S$ 1,766.06 1766.06 SGD S$ 1,766.06 Tax Excluded

Not Available For Sale

This combination does not exist.

Underwater Housings AOI
Contact Us

Please check with us on availability if this item is urgently required.​

Share

AOI UH-A7RV Underwater Housing

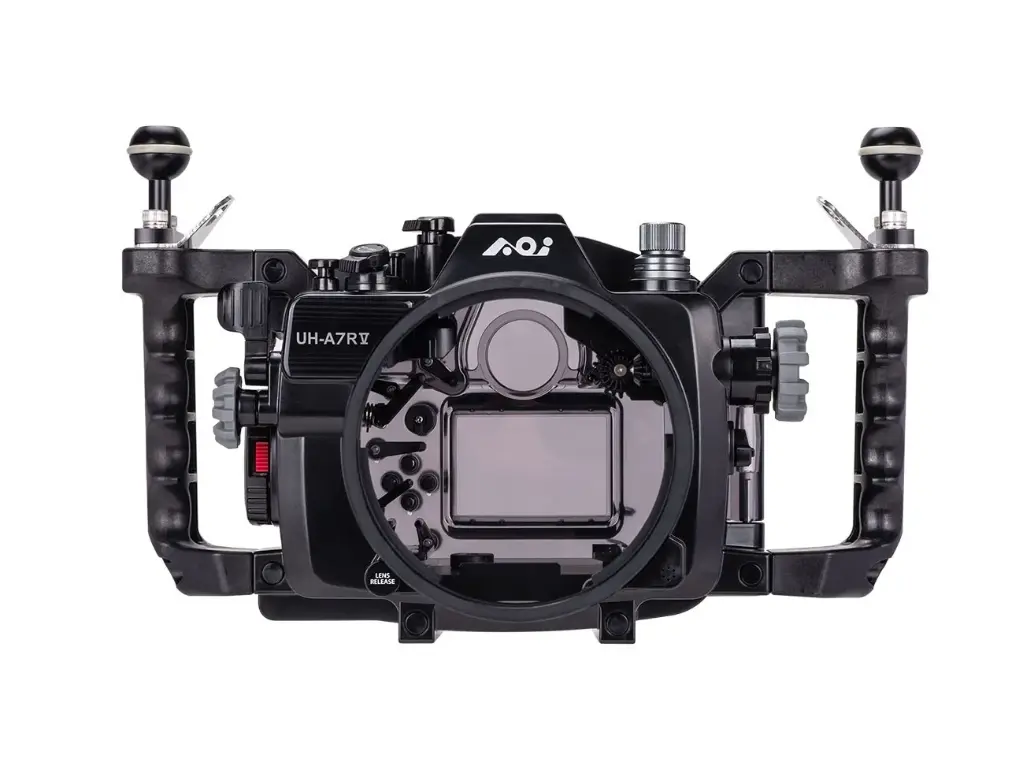

Premium underwater housing designed specifically for the Sony ILCE-7RM5 (A7R V) camera.

Key Specifications

  • Model Number: AOI UH-A7RV
  • Housing Colour: Black

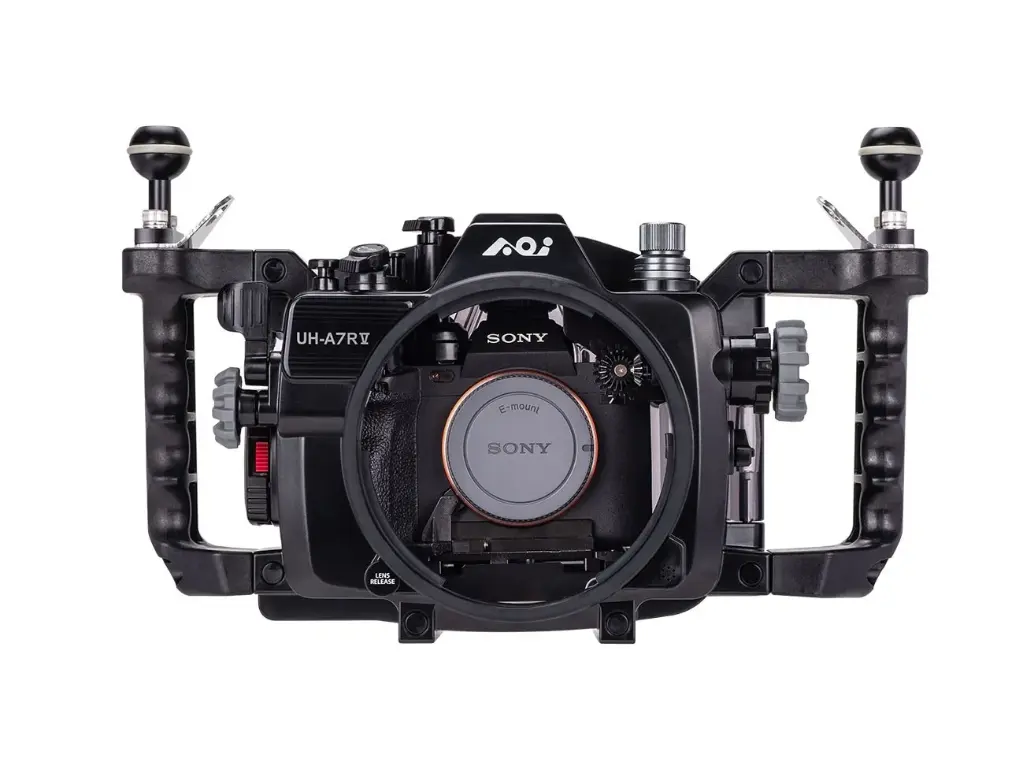

  • Compatible Camera: SONY ILCE-7RM5
  • Main Material: PC + GF (Polycarbonate + Glass Fiber)
  • Depth Rating: 60 Meters
  • Lens Port System: AX Port System

Flash Control

  • Modes:
    • a) SONY TTL
    • b) M-HSS
    • c) Manual Flash (without Pre-flash)
  • Compatible Strobes:
    • AOI: UCS-Q1i / UIS-P1
    • BACKSCATTER: AB-HF-1 / AB-MF-3

Advanced Features

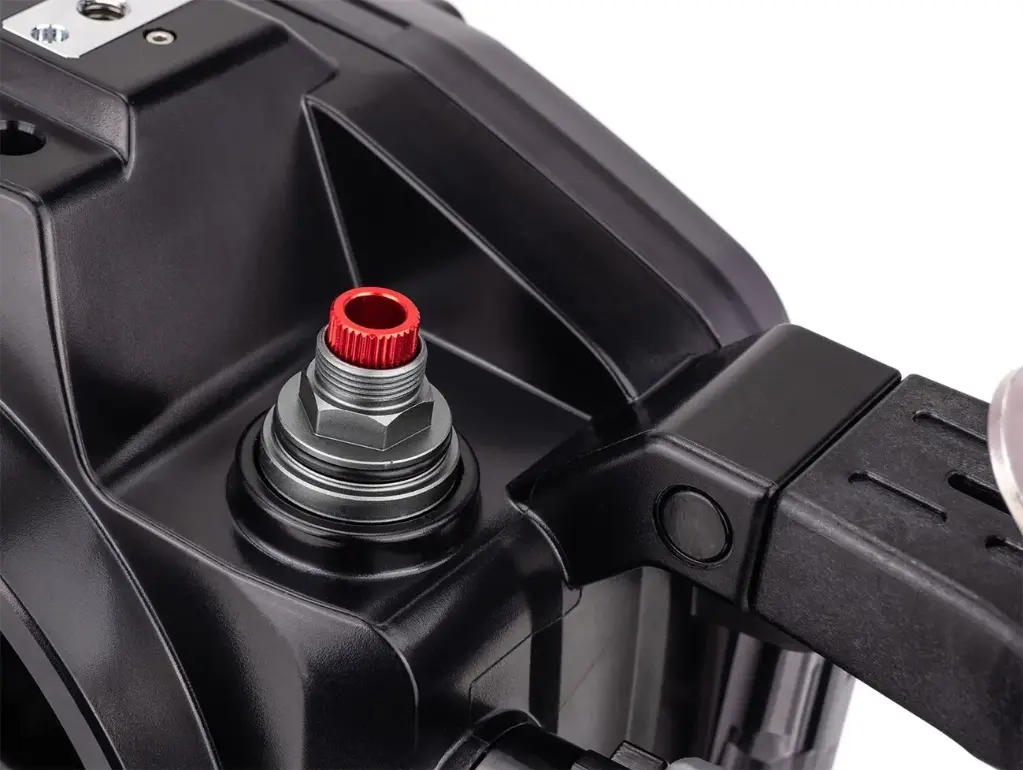

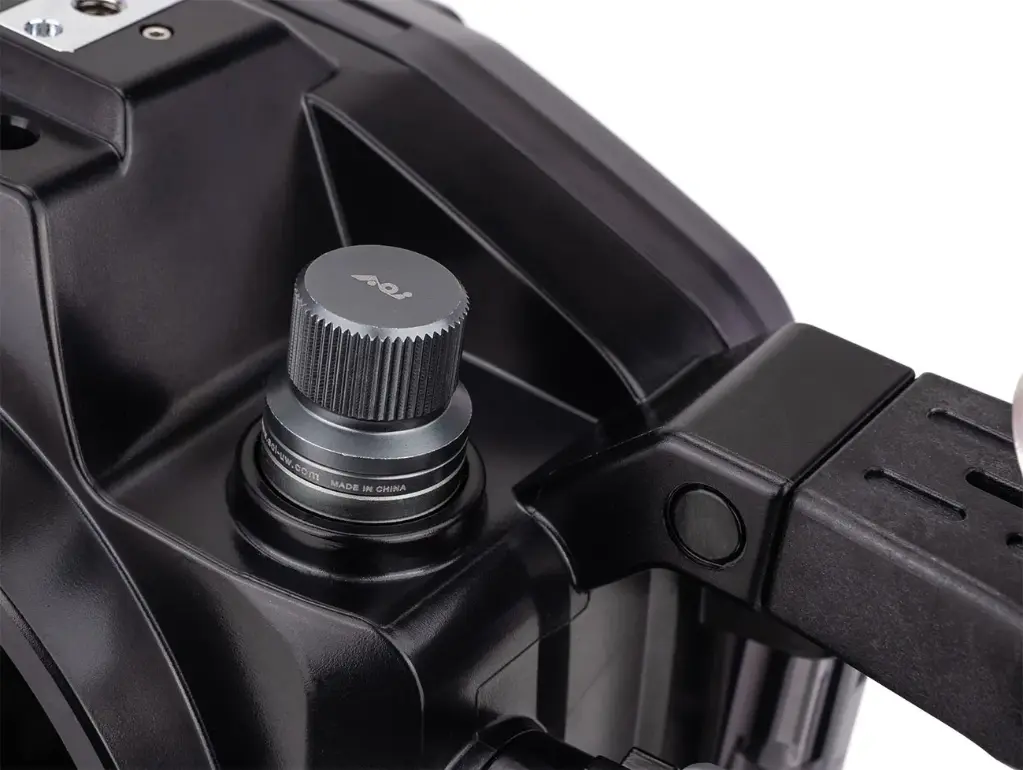

  • Water Leakage Protection: Built-in Vacuum Analyzation and Wet Detection System (VWS)
  • Water Depth Monitor: Max. monitoring up to 60 meters with preset depth alarm function

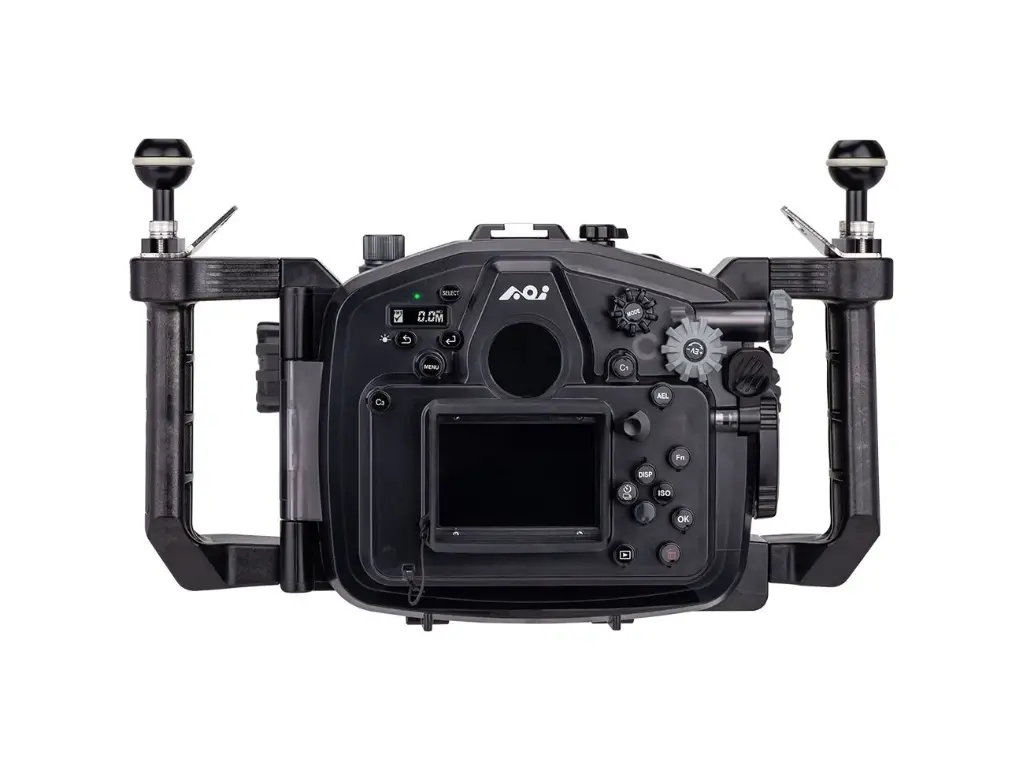

  • Information Display:
    • VWS Monitor
    • Water Depth Monitor
    • Depth Alarm
    • Wet Detection Alarm
    • TTL Flash / M-HSS Flash / Manual Flash Selection

Power & Battery

  • Power Source: Built-in Rechargeable Lithium Polymer Battery (3.7V 700mAh)
  • Charging: USB Charger DC5V, 0.5A (not included) – Approx. 1.5 hours for full charge
  • Operation Time: 18 hours (continuous operation)

Physical Specifications

  • Dimensions: 321.5 mm (L) × 130.4 mm (W) × 203.5 mm (H)
  • Weight (On Land): Approx. 2981.0 g (housing body + body cap only)
  • Weight (Underwater): Approx. -190.0 g (neutral buoyancy with Sony ILCE-7RM5, battery, FE 28-60mm F4-5.6 lens, AOI FLP-103 port & HSC-03 hot shoe connector)

Standard Accessories Included

  • Body Cap (AOI BC-101) ×1

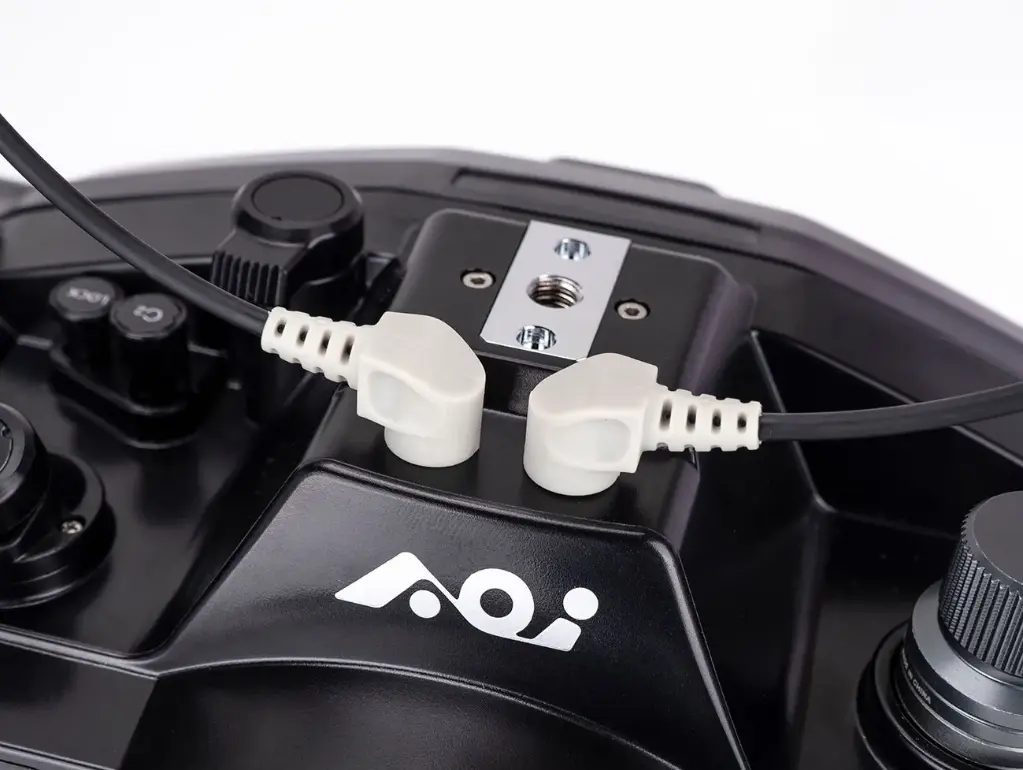

  • Hot Shoe Connector (AOI HSC-03) ×1
  • Camera Tray-02 ×1
  • Spare Main Seal O-ring (AOI SOR-07) ×1
  • Spare Secondary Seal Ring (AOI SSR-05) ×1
  • Spare O-ring for Vacuum Valve Protection Cap (AOI SRVV-01) ×1
  • O-ring Remover (AOI ORR-02) ×1
  • LCD Hood (AOI LCDH-01) ×1

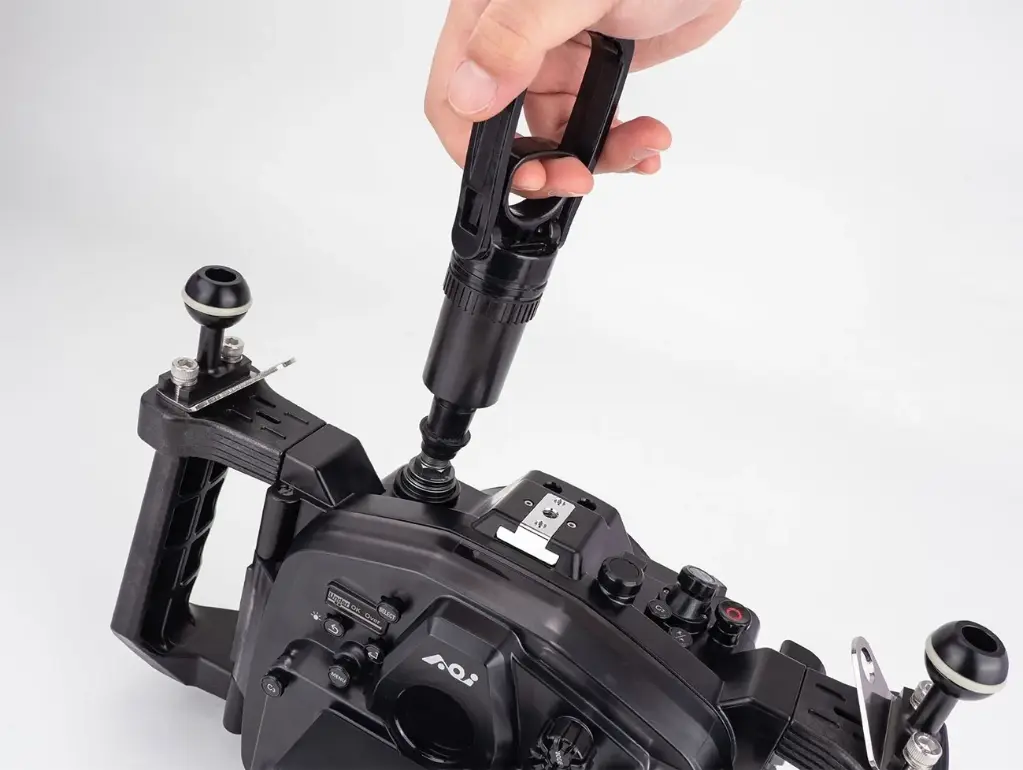

  • Vacuum Hand Pump (AOI VP-03) ×1
  • Silicone Grease (AOI SIGR-5) ×1
  • Lanyard (AOI LYD-01) ×1
  • Silica Gel (AOI SIGE-3) ×1
  • Ball Mount Base (AOI BM-01-BLK) ×1
  • USB Type-C Charging Cable (AOI USBC-02)

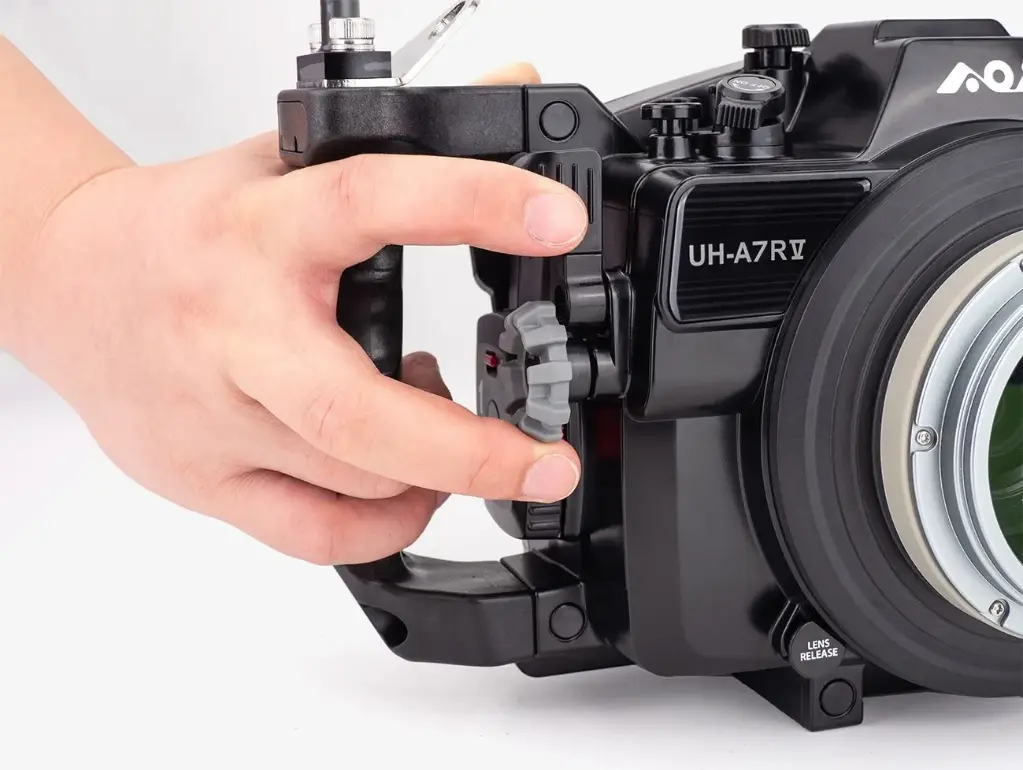

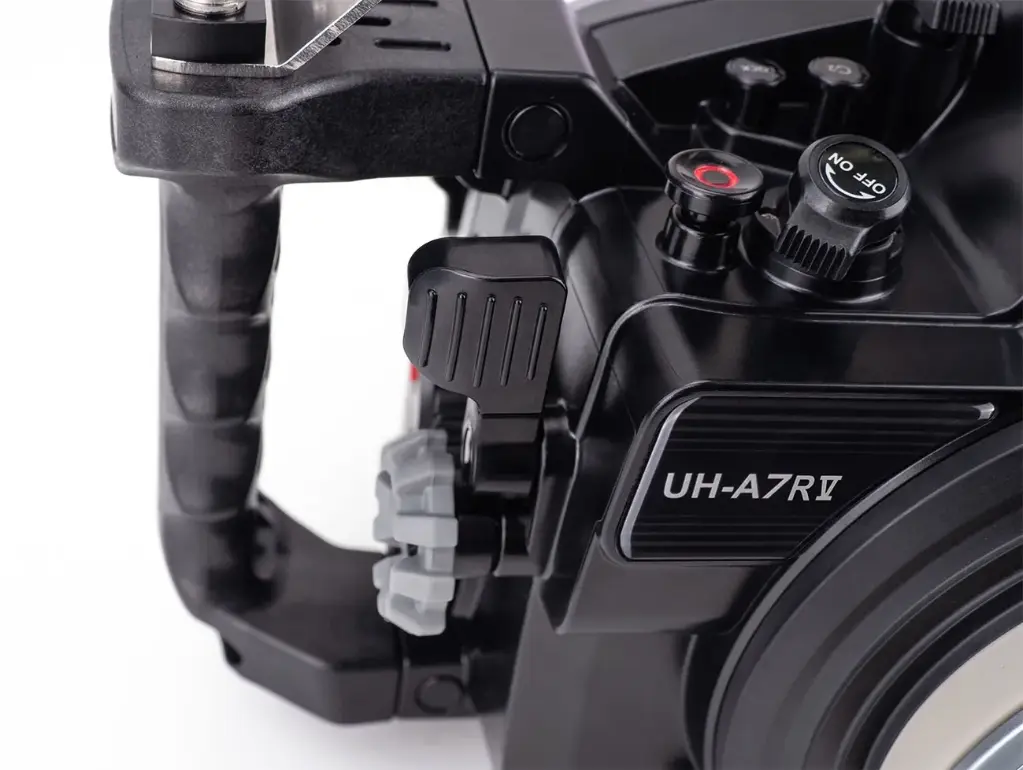

  • Extended Shutter Release Lever ×1
  • Allen Key for M6 ×1
  • Micro-Fiber Cleaning Cloth (AOI MC-01) ×1

*Specifications and appearance are subject to change without prior notice.

Perfect for underwater photographers seeking reliable depth, vacuum safety, and full flash compatibility with the Sony A7R V mirrorless camera.
