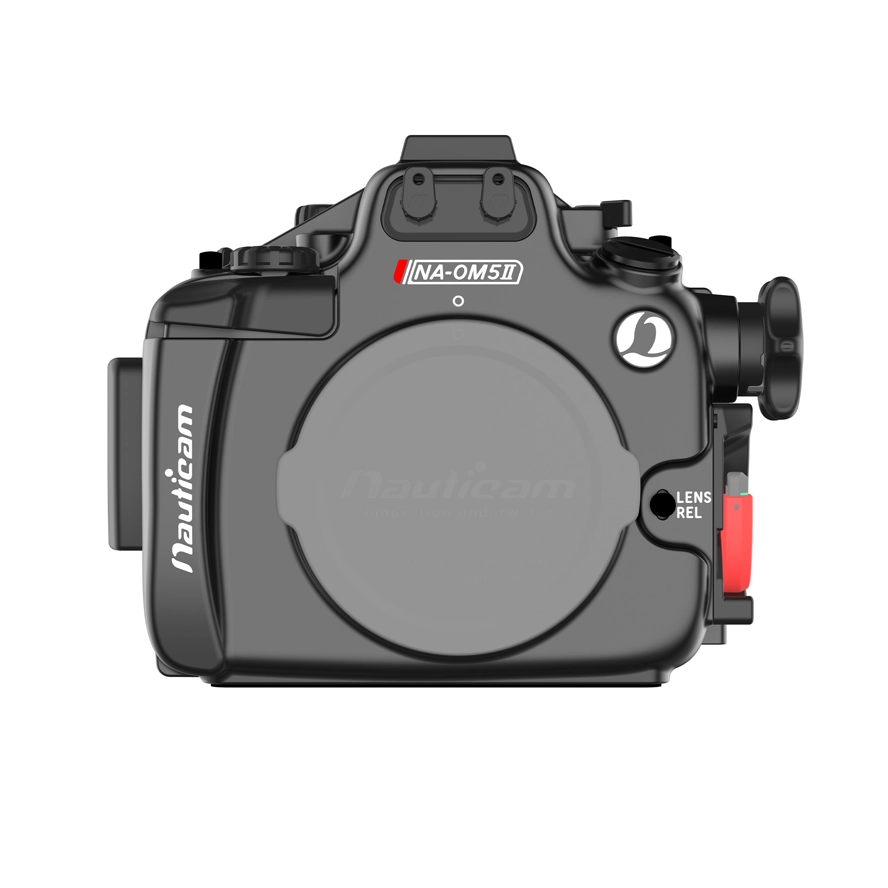

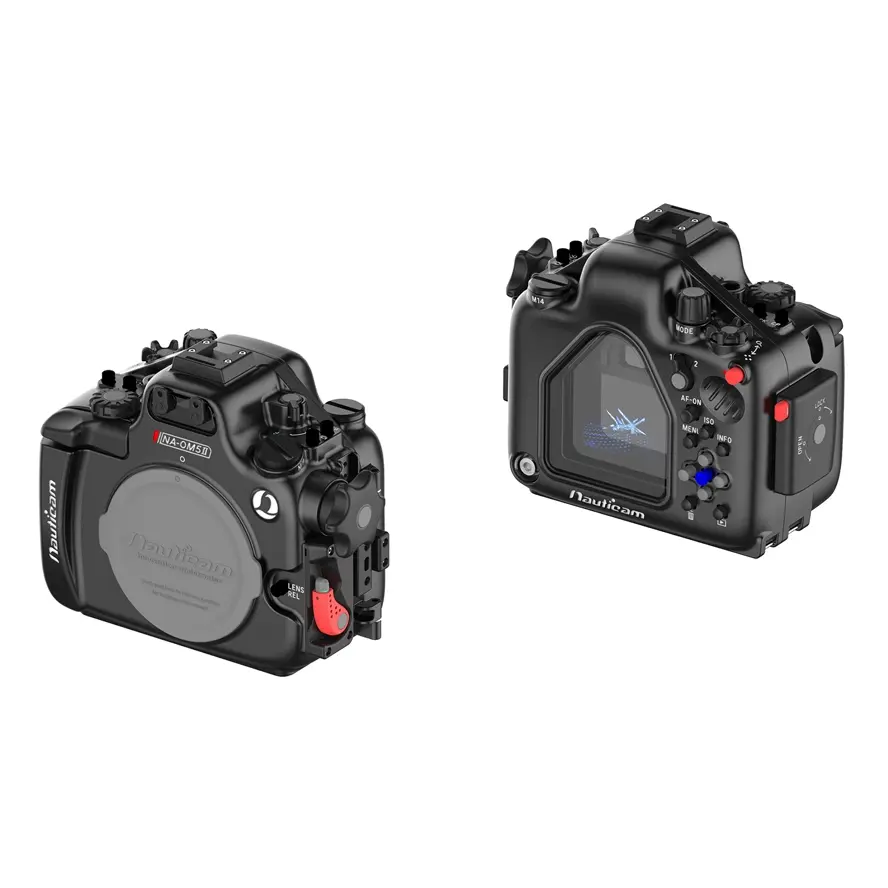

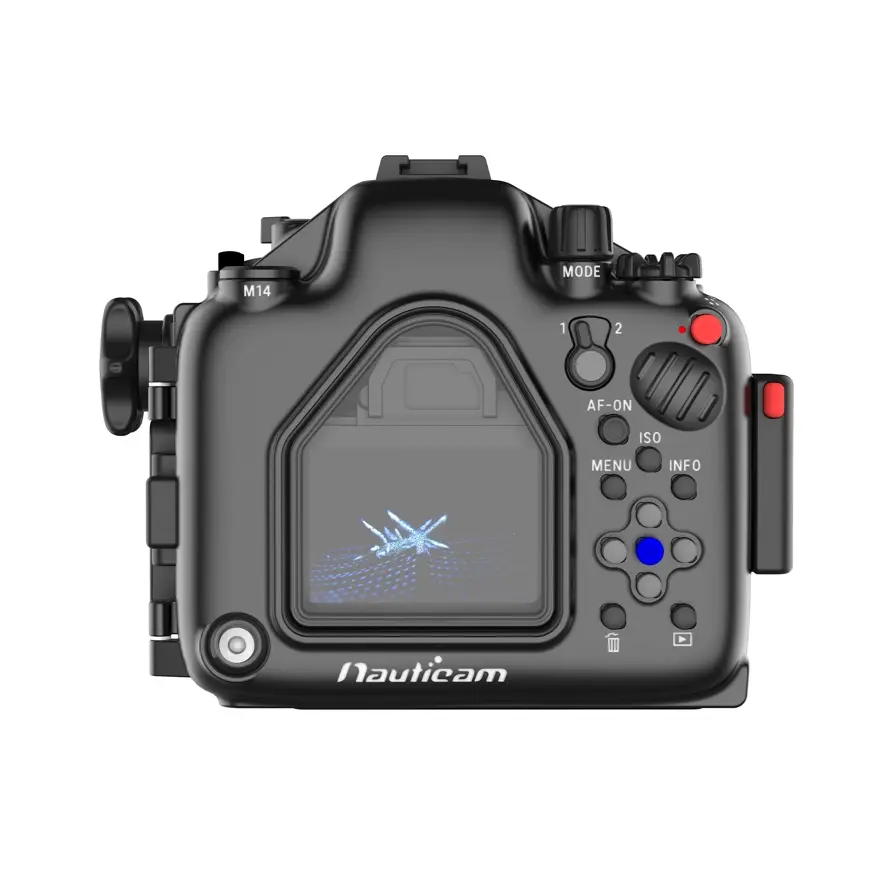

Nauticam NA-OM5II Housing for Olympus OM-5II Camera

Specification:

• Dimensions: 197mm(W)x 154mm(H) x 99mm(D)
• Weight in air:  TBA kg
• Buoyance in water: TBA kg (includes camera and battery)
• Depth Rating: 100m
• Port Opening:  N85
• Flash trigger:  Un-support Olympus FL-LM3
• Manual:  #26306 Mini Flash Trigger for Olympus (from SN A649652 onwards)
• Accessory ports:  Front 1xM16, Rear: 1x M14
• Vacuum valve (optional): 25624 M14 vacuum valve II
• Handle and stabilizing brackets: Not included.
• HDMI Support: HDMI 1.4
• Compatible cameras: Olympus OM-5II Camera

What’s in the box:

• NA-OM5II Housing
• Housing Cap
• 2x Optical bulkhead caps
• Panasonic CR-2032 Battery (pre-installed for moisture alarm)
• 90139 Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keys
• Padded housing bag and shoulder strap

Main Features

• Rotary style housing lock and N85 port lock
• An M10 threaded accessory mounting point
• One cold-shoe mount on top
• Critical controls are easy to access, such as Front & Rear dial, REC, AF-ON, CP, Fn1 & 2 Lever.
• Integrated Vacuum Check and Leak Detection System

 Housing O-rings:

• 90139 Housing o-ring (I.D.=150mm, C.S.=2.5mm)

 Port system:

• N85 M4/3 system

Port Adaptors

• 36052 N85 to N120 47mm port adaptor with knob for M4/3 System
• 36401 N85 to N120 55mm port adaptor

Flash Triggering:

Optical Trigger

• Manual:  26306 Mini Flash Trigger for Olympus (from SN A649652 onwards)

Recommended Accessories:

Housing Tray and Hand Strap

• 71206 Easitray II with left handle (with 2pcs 1/4'' screws)
• 71207 Flexitray II with left handle (with 2pcs 1/4'' screws)
• 71208 Adjustable right handle II (for Easitray II & Flexitray II)
• 71209 Flexitray plate II W with left handle (with 2 tripod holes)
• 71311 Strobe mounting ball for Easitray& Flexitray
• (xxxxx Handle bracket for NA-OM5II may be required)
• 36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
• 36323 Long hand strap for Mirrorless IL camera & compact camera housing

Shutter Extension

•         25200 Compact/MIL Housing Shutter Release Extension (for use with 71207/71209 and 71208).

Housing Mounting options

• 25311 Strobe mounting ball for cold shoe
• 25321 Long strobe mounting ball for cold shoe
• 25312 Light mounting stem for cold shoe
• 25322 Long light mounting stem for cold shoe
• 25221 M10 strobe mounting ball for housing

Vacuum Valve

• 25624 M14 vacuum valve II (Pushbutton Release)

Viewfinder

•  xxxxx NA-OM5II LCD Window for Nauticam Full Frame Viewfinder
•  32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
• 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1

Surface USB-PD Power bank(TBA)

•  26325 USB-C Bulkhead with USB-C Connector

Compatible gear for Olympus 1250, Panasonic PZ 14-42 zoom lens

• 36147 O1250-Z Olympus M.Zuiko 12-50mm F3.5-6.3 EZ zoom gear  (*Discontinued)
• 36162 Macro Port and Zoom gear set for Olympus M.Zuiko Digital ED 12-50mm F3.5-6.3 EZ   (*Discontinued)
• 36146 P1442X-PZ Panazonic Lumix G X Vario PZ 14-42mm F3.5-5.6 ASPH. POWER O.I.S. (H-PS14042) zoom gear
• 36061 P1442X-PZ Zoom Gear (compatible with NA-GH5) for Panazonic Lumix G X Vario PZ 14-42mm F3.5-5.6 ASPH. POWER O.I.S.

HDMI OUTPUT:

1)     Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread
• 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400 (for internal connection from HDMI bulkhead to camera) TBA

  2)   Compatible Monitor Options:

• 16612 Nauticam 7'' T7 UW ULTRAHD Monitor  (HDMI 1.4 input, excl. cables)
• 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
• *25047 is Required for use with 16612 monitor housing
• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input (*17927 includes 25033,25038,25100)
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
• *25082 is Required for use with 17922 monitor housing

Wet Lenses:

 Macro

• 81203 Super Macro Convertor 3 (2.3x Magnification)
• 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
• 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
• 81501 Mid-range Focus Optimizer 1
• 81503 Mid-range Focus Optimizer 3

 Wideangle

• 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses
• (incl. float collar)
• 83203 Wet Wide Lens Compact
•  (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
• 86201 Macro to Wideangle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens

 Macro to wideangle

• 87301 EMWL Set #1 (incl. focusing unit #1, 150mm relay lens and 3 objective lenses)
• 87201 EMWL Focusing Unit #1 (for Nikon FF 105mm & M4/3 60mm)
• 87211 EMWL 150mm Relay Lens
• 87212 EMWL Angled Relay Lens
• 87221 EMWL 60° Objective Lens
• 87222 EMWL 100° Objective Lens
• 87223 EMWL 130° Objective Lens
• 87226 EMWL 160° Objective Lens

 Wet Lenses Accessories

• 25101 M67 flip diopter holder for M67 macro ports
• 25108 M67 Double Flip Holder for M67 Macro Ports
• 83250 M67 to Bayonet Converter II
• 83251 M77 to Bayonet Converter II
• 83214 Bayonet Mount Adaptor for SMC/CMC
• 87501 Flip Holder for EMWL
• 87512 Shade for 130° Objective Lens
• 87513 Shade for 100° Objective Lens
• 87518 Strobe Mounting Brackets for EMWL Relay Lens
• 87519 Shade for 160° Objective Lens

 Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)

• 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
• 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
• 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
• 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
• 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
• 72233 Single Bayonet Holder II for Ø70 Float Arm
• 72234 Double Bayonet Holder II for Ø70 Float Arm
• 72243 Single Bayonet Holder II for Ø90 Float Arm
• 72244 Double Bayonet Holder II for Ø90 Float Arm
• 83252 Bayonet Holder for Arms
• 83253 Double Bayonet Holder for Arms
• 83254 Bayonet Lens Holder for Inon Float Arms
• 87516 EMWL Bayonet Holder for Ø70 Float Arm
• 87517 EMWL Bayonet Holder for Ø90 Float Arm
