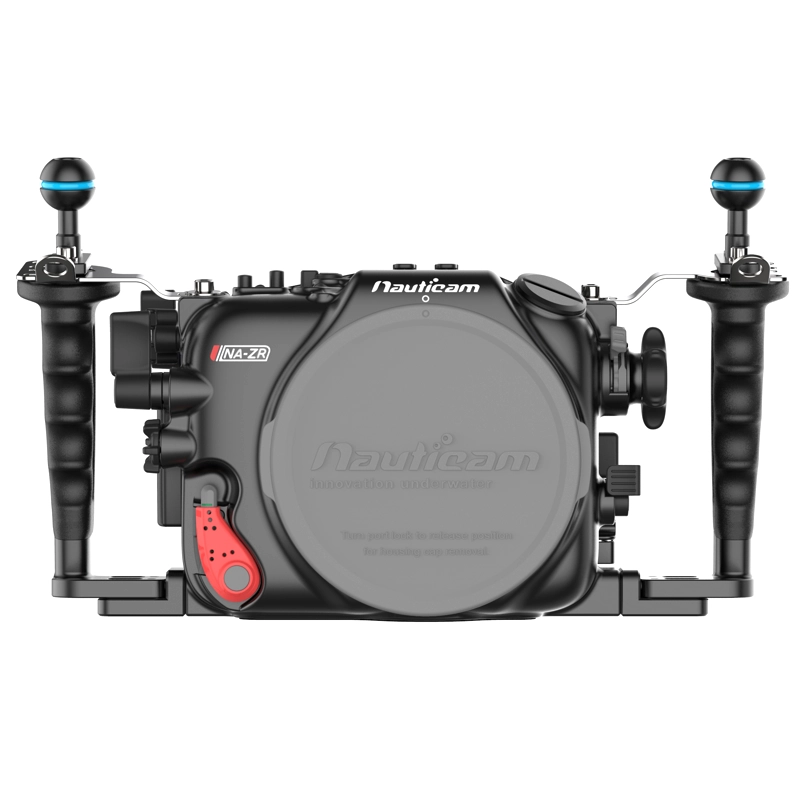

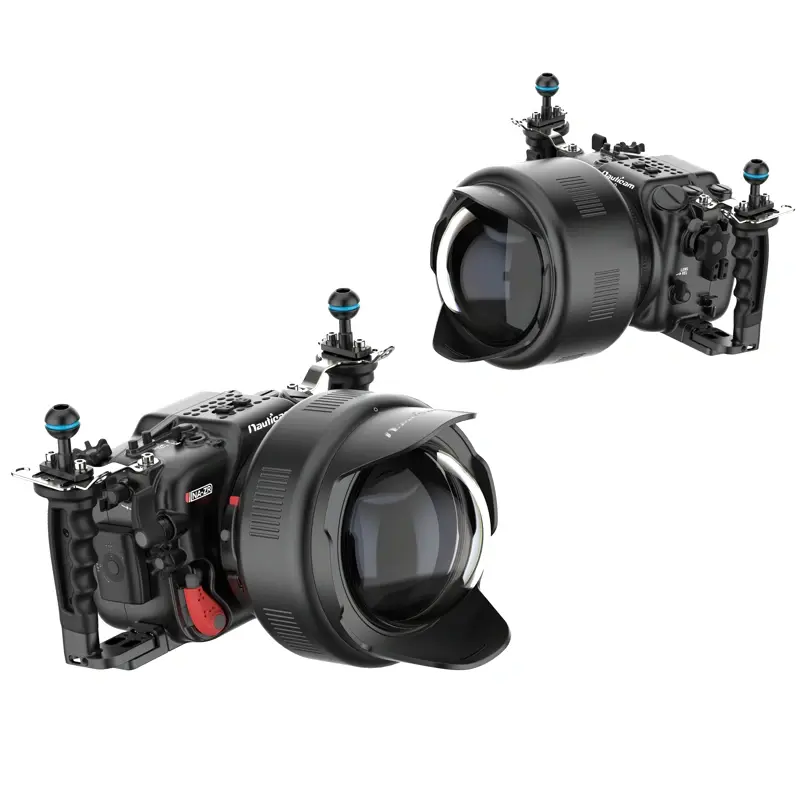

Nauticam NA-ZR Housing for Nikon ZR Camera

​Specification:

• Dimensions: 338mm(W)x 200m(H) x 125mm(D)
• Weight in air: TBA
• Buoyance in water: TBA (includes camera and battery)
• Depth Rating: 100m
• Port mount: N120
• Accessory ports: Front: 1x M24, 1x M16, 1x M10 threaded hole. Rear: 1x M16
• Vacuum valve (optional): 25625 M16 vacuum valve II
• Handle and stabilizing brackets: Pre-installed
• HDMI support: HDMI 2.0/1.4C
• Compatible cameras: Nikon ZR Camera

What’s in the box:

• NA- ZR Housing
• 2x handles with mounting balls and handle brackets
• Housing Cap
• 2x plugs for Optical fiber cable mount
• Panasonic CR-2032 Battery (pre-installed for moisture alarm)
• Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keysc
• Padded housing bag and shoulder strap

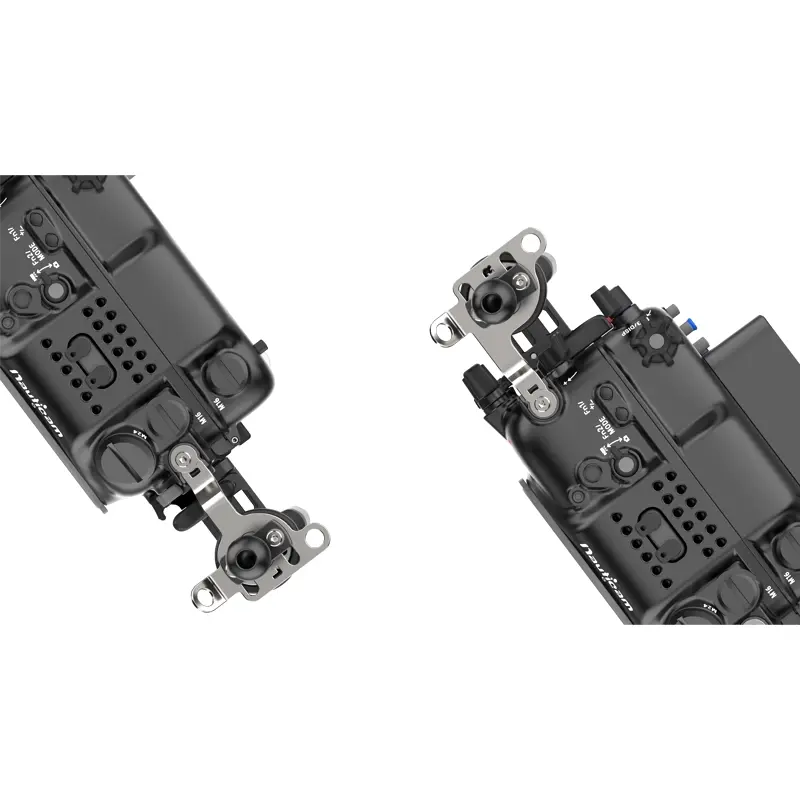

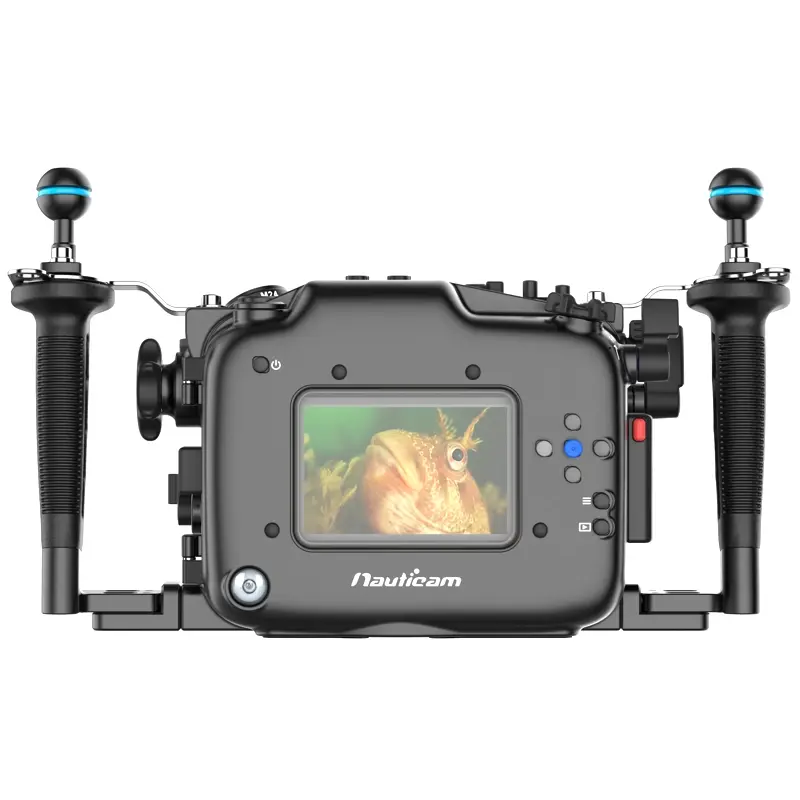

Main Features:

• N120 Port Lock II*
• MIL handles with Rotary Housing Lock.
• + & - Lever, Fn3/DISP Lever are routed to close the right side handle
• Lens REL Lever
• Integrated Vacuum Check and Leak Detection System
• 1/4-20 thread holes on the top
• Support Z mount lenses only with new N120 Gear System III for Nikon Z Mount (41)
• *support to install Extension/Port and lock automatically when the red port lock lever is closed

Housing O-rings:

• 90136 Housing O-ring (I.D.=155mm, C.S.=2.5mm)

Port system:

• N120 PORT SYSTEM FOR NIKON ZR

Port Adaptors

• 22225 N120 FTZ Adaptor ER 25 with Knob *for focus control

Compatible Gears

• 19231 Z105-FII for Nikkor Z MC 105mm F/2.8 VR S
• 19232 Z2450-ZII Zoom Gear for Nikkor Z 24-50mm f/4-6.3
• 19233 Z2850-ZII Zoom Gear for NIKKOR Z 24-50mm f/4-6.3 with 28-50mm Limitor Ring
• 19234 Z1424-ZII Zoom Gear for Nikkor Z 14-24mm f/2.8 S
• 19235 Z1430-ZII Zoom Gear for Nikkor 14-30mm f4 S
• 19236 Z2470II-ZII Zoom Gear for Nikkor Z 24-70mm f2.8 S II
• 19237 ZS2860-Z Zoom Gear for Sony FE 28-60 F4-5.6 (with Megadap ETZ 21 Pro+)

Flash Triggering:

Optical Trigger

• xxxxx Mini Flash Trigger for NA-ZR

Electrical Triggering

• 25013 M14 Nikonos 5-pin bulkhead with hotshoe connection

Recommended Accessories:

Housing Mount

• 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
• 25221 M10 strobe mounting ball for housing
• 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
• 25228 M5 strobe mounting ball for housing

Vacuum Valve

• 25625 M16 Vacuum Valve II (Pushbutton Release)

Lanyard

• 25413 27cm lanyard with 2 snap hooks

Surface USB-PD Power bank

• 26325 USB-C Bulkhead with USB-C ConnecCtor

​ ​(not supported to use with HDMI OUT together)

Housing Shade

• xxxxx LCD window shade for NA-ZR

HDMI OUTPUT:

Required accessories for HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3 to use with Ninja V housing (TBA)

Monitor housing Options:

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread
• 26326 M24-M16 Adaptor for use with 26325
• 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/XH1/A6400
• (for internal connection from HDMI bulkhead to camera)
• Monitor housing Options:
• 16611 Nauticam 7'' G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
• 16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
• 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
• *25047 is Required for use with 16611/16612.
• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
• *17927 includes 25033,25038,25100.
• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
• *25082 is Required for use with 17922 monitor housing

Monitor Mounting system

• 17951 Nauticam Atomos Shogun housing mounting system
• 17952 Nauticam Monitor Housing Mounting Adaptor
• 17954 Tripod plate for NA-A7S and NA-GH4
• 17960 Universal Quadra-Pod Plate for Nauticam Housings
• 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)

Wet Lenses

Macro

• 81202 Super Macro Convertor 2 (4x Magnification)
• 81203 Super Macro Convertor 3 (2.3x Magnification)
• 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
• 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
• 81501 Mid-range Focus Optimizer 1
• 81503 Mid-range Focus Optimizer 3

Wide-Angle

• 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
• 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
• 85204 Wide Angle Conversion Port - 2 (WACP-2) 140 Deg. FOV with Compatible 14mm Lenes (incl. float collar)
• 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
• 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and
• Interchangeable Port Mounting Ring - (WACP-1B)
• 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170 Deg.
• FOV with Compatible 28mm Lenses

Macro to Wide-Angle

• 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
• 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
• 87211 EMWL 150mm Relay Lens
• 87212 EMWL Angled Relay Lens
• 87221 EMWL 60° Objective Lens
• 87222 EMWL 100° Objective Lens
• 87223 EMWL 130° Objective Lens
• 87226 EMWL 160° Objective Lens

Wet Lenses Accessories

• 25101 M67 flip diopter holder for M67 macro ports
• 25108 M67 Double Flip Holder for M67 Macro Ports
• 83250 M67 to Bayonet Converter II
• 83214 Bayonet Mount Adaptor for SMC/CMC
• 87501 Flip Holder for EMWL
• 87512 Shade for 130° Objective Lens
• 87513 Shade for 100° Objective Lens
• 87518 Strobe Mounting Brackets for EMWL Relay Lens
• 87519 Shade for 160° Objective Lens

Buoyancy Recommendation for Housing Setups: (depending on port and lens choices)

• 72216 Ø70x200mm Carbon Fibre Aluminium Float Arm (Buoyancy 370g)
• 72217 Ø70x250mm Carbon Fibre Aluminium Float Arm (Buoyancy 520g)
• 72218 Ø70x300mm Carbon Fibre Aluminium Float Arm (Buoyancy 670g)
• 72219 Ø90x170mm Carbon Fibre Aluminium Float Arm (Buoyancy 450g)
• 72220 Ø90x220mm Carbon Fibre Aluminium Float Arm (Buoyancy 720g)
• 72233 Single Bayonet Holder II for Ø70 Float Arm
• 72234 Double Bayonet Holder II for Ø70 Float Arm
• 72243 Single Bayonet Holder II for Ø90 Float Arm
• 72244 Double Bayonet Holder II for Ø90 Float Arm
• 83252 Bayonet Holder for Arms
• 83253 Double Bayonet Holder for Arms
• 83254 Bayonet Lens Holder for Inon Float Arms
• 87516 EMWL Bayonet Holder for Ø70 Float Arm

• 87517 EMWL Bayonet Holder for Ø90 Float Arm
