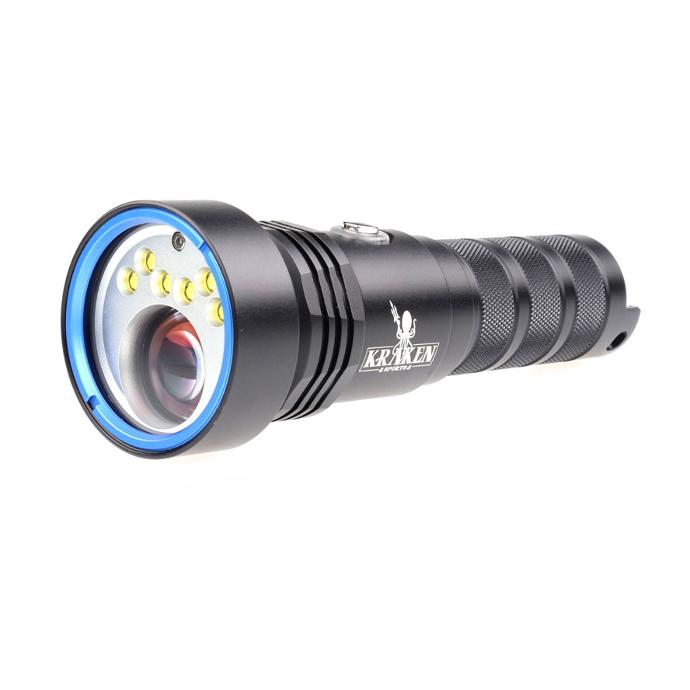

Kraken 3° Spot Beam with 2500 lumens Wide Beam

Kraken NR-LEP01: The Ultimate Underwater Spotlight

The Kraken NR-LEP01 is a groundbreaking underwater lighting solution that combines a powerful 2500-lumen flood beam with a unique laser-powered spotlight (LEP). This innovative dive light offers exceptional versatility for a wide range of underwater activities.

Key Features:

• Dual Illumination Modes: Switch seamlessly between a bright 2500-lumen wide flood beam (ideal for broad scene illumination) and an intense laser-powered spotlight for precise focusing.
• Laser Precision: The spotlight delivers an extremely narrow beam, perfect for tasks such as hunting, spearfishing, critter spotting, and blackwater diving. Its focused intensity reveals fine details without disturbing the surroundings.
• Ideal for Dive Guiding: Whether you're a professional guide or recreational diver, the bright spotlight excels at leading groups, signaling, and highlighting points of interest underwater.
• Flexible Mounting Options: Easily attach the light to a wrist glove or secure it via a ball mount using the threaded hole on the bottom, allowing seamless integration with your existing rig.
• Unmatched Design: There is truly no other light like it in underwater recreation. The fusion of high-output flood and laser precision sets the NR-LEP01 apart from traditional dive lights.

The Kraken NR-LEP01 redefines underwater illumination with unparalleled brightness, adaptability, and precision. Whether exploring shipwrecks, photographing macro subjects, or guiding dives, this light is a true game-changer. Dive responsibly and discover the underwater world in stunning clarity with the NR-LEP01!

Specifications

Light Performance

• Wide Light Output: 2500 lumens
• Spot Light Output: 8 Watts LEP
• LED Life: Over 50,000 hours
• Beam Angle: 100° (Wide) / 3° (Spot)

Battery & Power

• Battery Type: 26650 Li-ion (6000mAh)
• Charging: Type-C USB Port (5V, Max 2A)
• Burn Time (Wide): 60 minutes at 100%
• Burn Time (Spot): 120 minutes at 100%

Physical Specifications

• Dimensions: 54.5mm (D) x 162mm (L)
• Weight (Land): 388g
• Weight (Underwater): 211g
• Depth Rating: 100m / 330ft

Operating Modes

• Available Modes: Wide / Spot / SOS / Strobe
• Brightness Levels: 100% / 50% / 25%
• Control: Single push button operation
• Battery Indicator: 4-color LED system

Key Features

• Dual Light Technology: Combines 2500-lumen wide LED with 8-watt LEP spot light for maximum versatility
• Professional Depth Rating: Certified waterproof to 100 meters (330 feet) for deep diving applications
• Intelligent Battery Management: Battery level indicator with 4-color system and automatic brightness adjustment when battery is low
• Thermal Protection: Automatic brightness reduction when internal temperature becomes too high for safe operation
• Multiple Lighting Modes: Wide, Spot, SOS, and Strobe functions with three brightness levels (100%, 50%, 25%)
• Long Battery Life: Up to 60 minutes at full power for wide mode, 120 minutes for spot mode
• Ergonomic Design: Single-button operation with intuitive controls, even with diving gloves
• Ultra-Light Underwater: Weighs only 211g underwater for reduced fatigue during extended dives

Battery Level Indicator

The LEP01 features an intelligent 4-color battery indicator system:

BLUE: Battery fully charged

GREEN: Approximately 50% charged

RED: Battery charge is low

FLASHING RED: Battery very low, light will power off

Operating Modes & Brightness Levels

Operation Instructions

Power ON/OFF

1. Turn ON: Turn the tail cap clockwise until tight, then press and hold the ON/OFF button for 1 second. Default brightness is 100%.
2. Turn OFF: Press and hold the ON/OFF button for 2 seconds.

Switching Between Modes

1. Spot ↔ Wide: When light is ON, press and hold button for 1 second to cycle: Spot → Wide → Spot
2. Activate SOS: From OFF state, press and hold button for 2 seconds
3. SOS ↔ Strobe: When in SOS mode, press and release button to switch
4. Exit SOS: Press and hold button for 2 seconds

Adjusting Brightness

When the light is ON, press and immediately release the ON/OFF button to cycle through brightness levels: 100% → 50% → 25% → back to 100%

Battery Installation & Charging

Installing the Battery

1. Turn the tail cap counter-clockwise to open
2. Insert the 26650 Lithium battery into the tail cap
3. IMPORTANT: Check the label inside the tail cap and align battery positive (+) and negative (-) terminals correctly
4. Turn the tail cap clockwise to reattach to the head

Charging the Battery

1. Use the included charger, AC adapter, and USB cable
2. Connect to USB power source (5V, maximum 2A)
3. Charging indicator will be RED while charging
4. When fully charged, indicator will turn BLUE

Included Accessories

• 26650 Lithium Battery

• • 6000mAh with Type-C USB charging port

• Charger & AC Adapter

• • For convenient battery charging

• USB Cable

• • Type-C charging cable

• Spare O-rings

• • 2 replacement O-rings for maintenance

• Hand Rope Lanyard

• • Secure attachment for diving

• Soft Carry Bag

• • Protective storage solution

Troubleshooting

Maintenance

O-ring Maintenance

The LEP01 has two O-rings in the tail cap that require regular maintenance:

1. Use silicone grease to keep O-rings well lubricated
2. Lubricate if light hasn't been used for a long time or if O-rings feel hard
3. Replace O-rings if damaged, broken, or deformed
4. WARNING: Do not use sharp tools to remove O-rings

⚠️ Important Warnings

1. ONLY use 26650 Lithium batteries provided by the manufacturer
2. DO NOT open the tail cap when the LEP light is in the water
3. Remove battery if light will not be used for a long period

Failure to comply with these warnings may result in damage and will void the warranty.

🛡️ Warranty Information

Kraken provides a 1-year warranty against manufacturer defects from the date of purchase.

• First 15 days: Manufacturer defects result in product exchange at vendor
• Within 1 year: Manufacturer defects repaired at no cost
• Requirements: Proof of purchase required
• Not covered: Misuse, modification, damage, natural disasters, or battery issues

Safety Features

• Thermal Protection: Automatically decreases brightness when internal temperature becomes too high
• Battery Stretch: Automatically adjusts brightness to conserve power when battery is low
• Waterproof Design: Rated to 100m depth with properly maintained O-rings
• Battery Level Warning: Visual indicators prevent unexpected power loss underwater

Please read the manual carefully before using the LEP light.

For warranty support or questions, contact your authorized Kraken dealer.
