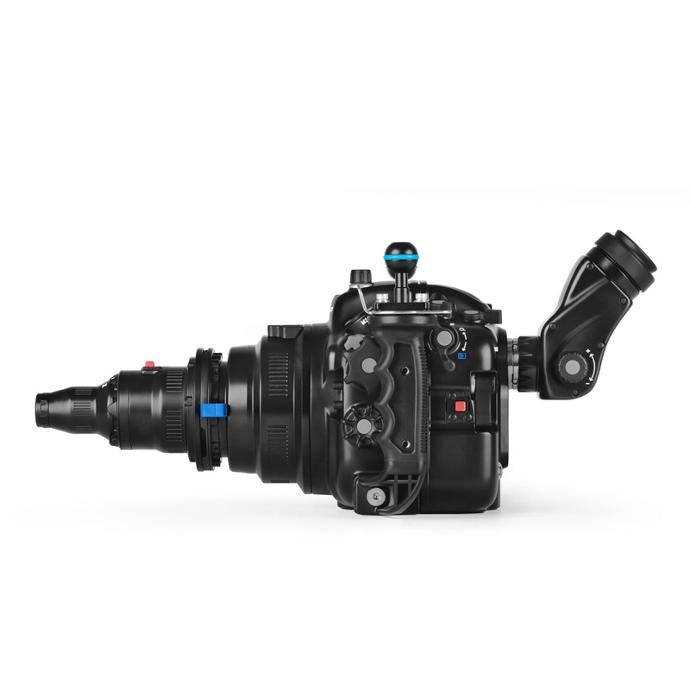

Nauticam Reverse Angled Viewfinder for EMWL（32°/ 1:1）

https://www.divesea.shop/web/image/product.template/31384/image_1920?unique=5244cd5
Brand: Nauticam
SKU: 87215

Specialized version of the angled viewfinder to work with EMWL without the need of the Relay Lens

S$ 2,201.83 2201.83 SGD S$ 2,201.83 Tax Included

Not Available For Sale

This combination does not exist.

Nauticam
Contact Us

Please check with us on availability if this item is urgently required.​

Share

This specialized version of the Nauticam Enhanced Full-Frame Angled Viewfinder (32º/1:1) is designed to work specifically with the EMWL using ONLY the Focus Unit and the Objective Lens.

TECHNICAL SPECS

 Magnification Ratio1:1
Dioptric Adjustment Range-3 to +3
Depth Rating100m

INTRODUCING REVERSE ANGLED VIEWFINDER FOR EMWL（32°/ 1:1）

REVERSE ANGLED VIEWFINDER FOR EMWL（32°/ 1:1）

In this setup, without the relay lens, the image appears inverted in the viewfinder/EVF.  This version allows the image to appear in its proper orientation.  Removing the real lens allows for easier operation in certain conditions where a longer distance to the subject is not required.

COMPATIBILITY

This viewfinder is compatible with ALL Full-frame DSLR and Full-frame Mirrorless housings except the NA-A7C which requires the same adapter (#32215) as other mirrorless housings.

NOT compatible with NA-Z50, NA-XT3, NA-XT4, NA-XT5 or NA-EM1X.

RESOURCES

RESOURCES

Instruction Manual

What's In The Box

  • Front and rear covers
  • Neoprene bag
  • Spare o-rings x 3
  • Manual card

Optional Accessories

  • 32215 Viewfinder Collar Adaptor for 87213/87214 to use with MIL Housings
  • 90020 45/180˚ viewfinder O-ring set
  • 90037 Rubber caps for EVF rear, front and eye cap (3 parts)

Compatible Housing Systems

  • Digital Single Lens Reflex (DSLR) Camera Housings
  • Full Frame Mirrorless Camera Housings (except NA-A7C)
  • Mirrorless Interchangeable Lens (MIL) Camera Housings through using #32215 Viewfinder Collar Adaptor
  • NOT compatible with NA-Z50, NA-XT3, NA-XT4, NA-XT5 or NA-EM1X
