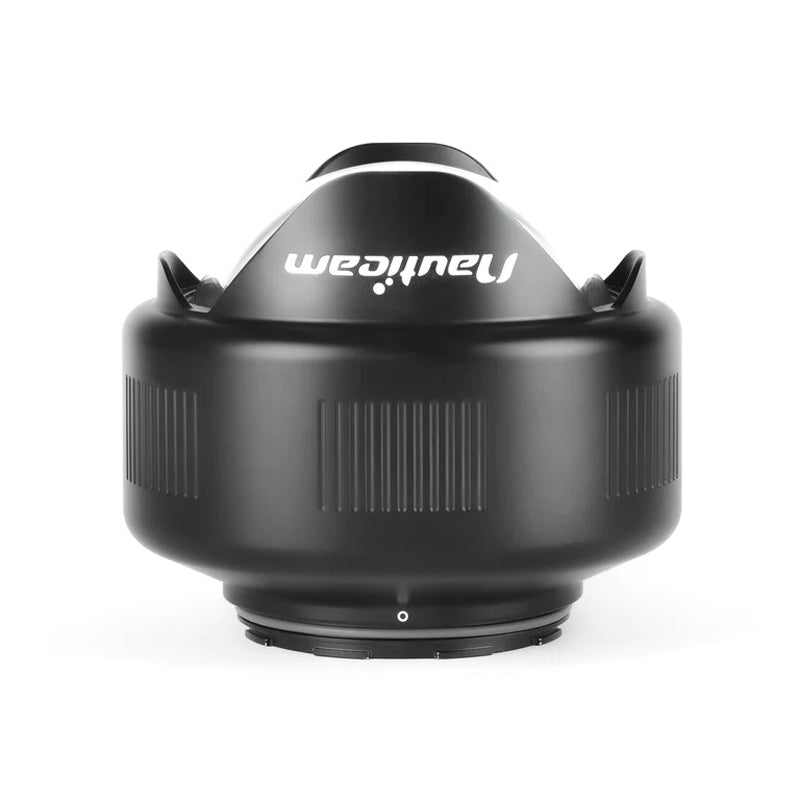

Nauticam N100 0.36x Wide Angle Conversion Port Compact (WACP-C)

http://www.divesea.com.sg/web/image/product.template/12127/image_1920?unique=e82b127
Brand: Nauticam
SKU: 85205

Wide Angle Conversion Port Compact (WACP-C)

S$ 3,913.10 3913.1 SGD S$ 3,913.10

S$ 3,590.00

Not Available For Sale

    This combination does not exist.

    Please check with us on availability if this item is urgently required.

    The WACP-1 and WACP-2 have raised the bar on what is possible in underwater optics. They offer the maximum in image quality with the widest angle of view available in a rectilinear lens.  Nauticam is now excited to release the next iteration of WACP, the WACP-C.  The Wide Angle Conversion Port Compact (WACP-C) is a fraction of the weight and size when compared to the WACP-1 and WACP-2.  When looking at volume, the WACP-C is approximately 37% smaller than WACP-1 and 75% smaller than WACP-2.

    TECHNICAL SPECIFICATIONS

    Depth Rating100m
    Outer Diameter x LengthDIA 170mm x 145.5mm
    Weight (in air)2.24 kg
    Buoyancy (in water)Negative 0.1 kg
    Body ConstructionHard-anodized Aluminum Alloy
    Lens Construction6 Elements in 5 Groups
    Lens CoatingAnti-reflective on both sides
    Port MountN100
    Depth Rating100m
    Focus RangeFront element to infinity

    COMPARISON CHARTS:

    IN THE BOX:

    • WACP-C with integrated Float Collar
    • Hard lens cap
    • Rear lens cap
    • Padded carrying bag
    • 90141 Spare O-ring
    • Cleaning cloth
    • Lubricant


    INTRODUCING N100 0.36X COMPACT WIDE ANGLE CONVERSION PORT (WACP-C)

    NAUTICAM WIDE ANGLE CONVERSION PORT COMPACT (WACP-C)

    Like the WACP-1 and WACP-2, the WACP-C is a dry mount lens design, functioning as both a port and optical lens. It is optimized to work with professional camera lenses up to a full-frame equivalent focal length of 28mm and offers an amazing 130° angle of view.  The WACP-C can focus as close as the front element and captures images with minimal distortion.

    A wide variety of lenses are supported, both primes and zooms for a variety of cameras. Please check the WACP-C PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.



    This image from Alex Mustard was shot with the Nikon 28-70mm f/3.5-4.5D and WACP-C.

    Similar to WACP-1, the WACP-C greatly improves the overall image sharpness.  The WACP-C will provide approximately 3 f-stops of increased corner sharpness when compared to traditional wide rectilinear lenses with a similar field of view behind a dome port.  This means being able to achieve about the same corner sharpness with WACP-C at f/5.6 that you could achieve with your rectilinear lens behind a dome port a f/16.  As a point of comparison, WACP-1 provides approximately 4 f-stops of increased corner sharpness.



    This image from Alex Mustard was shot with the Nikon 28-70mm f/3.5-4.5D and WACP-C

    The WACP-C's zoom-through capability means the underwater filmmaker or photographer can capture astonishing wide, medium and close-up shots all with one lens while maintaining optimum optical and close-focus performance. Take for instance the Sony 28-60mm f/4-5.6 lens which receives a field-of-view range of 69º to 130º with the WACP-C. This lens allows for acquisition of more dynamic content on each and every dive without the need for a second camera.



    This image from Alex Mustard was shot with the Nikon 28-70mm f/3.5-4.5D and WACP-C
