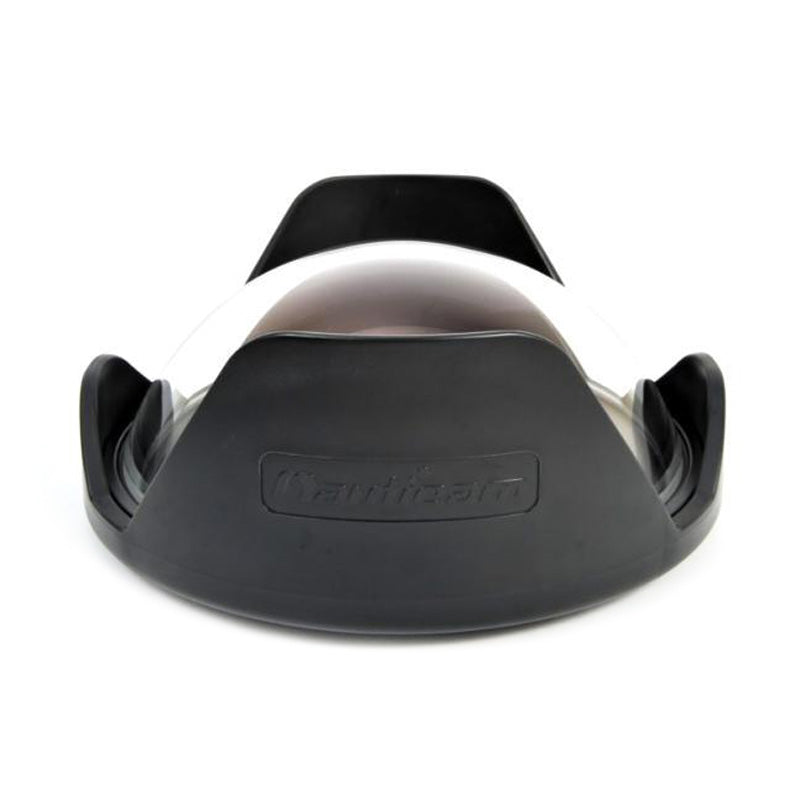

Nauticam 230mm Optical Glass Fisheye Dome Port II

Nauticam 230mm Optical Glass Fisheye Dome Port II

https://www.divesea.shop/web/image/product.template/12076/image_1920?unique=4ced892
Brand: Nauticam
SKU: 18812

Nauticam optical-glass dome ports are finely ground to the highest standard of precision and represent the state of the art in both manufacturing and optical technology. Different size ports are available to support a wide variety of lenses and housing types. Port extensions or adapters may be necessary for some ports and housings. This optical-glass fisheye port has a diameter of 230mm and is part of the N120 port system.

The internal port opening of this port is enlarged for larger diameter lenses like Canon EF 11-24mm f/4 USM.

Technical Specifications

Depth Rating100m
Port SystemN120
Weight2.67 kg
Port Opening Diameter109mm
Port Diameter230mm
Body MaterialAnodized Aluminum Alloy
Port MaterialOptical Glass
Port CoatingMulti-layer Broad-band Anti-reflective Coating Inside
Port Shade MaterialABS
Removable Port Shade

Spare O-ring90140


S$ 2,642.20 2642.2 SGD S$ 2,642.20 Tax Excluded

Not Available For Sale

This combination does not exist.

Nauticam
Contact Us

Please check with us on availability if this item is urgently required.​

Share

N120 230mm Optical Glass Wide Angle Port II | NAUTICAM

N120 230mm Optical Glass Wide Angle Port II

Professional Underwater Camera Port

P.N. 18812

About This Product

Thank you for your purchase of a NAUTICAM product.

At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.

Each product is individually inspected and water pressure tested to ensure optimum quality.

Please read this manual carefully before using the product, this will maximise its performance as well as its lifetime.

Specifications

Dimensions Dia 260mm x 112mm
Internal Diameter Dia 109mm
Port Mount N120
Coating (inner) Multi-layer broadband anti-reflective coating
Radius of Curvature 120mm
Weight Approx. 2.63kg
Depth Rating 100m

Box Contents

  • N120 230mm optical glass wide angle port II
  • Neoprene cover
  • Rear cap
  • Carrying bag
  • Spare O-ring
  • Spare screws (4x) for locking tab

Compatibility

This port is backwards compatible with other N120 extension rings. A user-installable locking tab is pre-installed for this purpose.

Important: Remove the locking tab when using large diameter lenses like Canon 11-24mm lens.

Refer to the housing manual or extension ring manual for mounting the port.

Care and Maintenance

  • The port should be rinsed thoroughly in fresh water (when mounted on a housing) after each dive.
  • Dry and clean the dome surface with micro fibre cloth.
  • Cover the dome with the provided cover when not in use.
  • Do not use any kind of abrasive solutions to clean the dome surface.

Warranty

All NAUTICAM Products are warranted against any material and manufacturing defects for two years from the date of purchase for consumer use. This warranty only applies to products purchased from authorised NAUTICAM dealers and does not extend beyond the original retail purchaser.

To return your product for service, please contact your regional authorized service centre(s). Please note that this warranty only applies when the product is purchased in the territory where the service centre is located.

Important Warranty Notes:

  • NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products.
  • NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
  • Unauthorised modifications and/or repairs of our products will automatically invalidate the warranty.

Identification of Parts

Alignment "O" mark
4x Screws (2x spares)
Locking tab for use with earlier version "pin locking" extension rings
Current as of 2016-09-30
